OEM/ODM 40kva Three Phase Online High Frequency Smart Power Ups

FOB Reference Price:Get Latest Price
US $150-180 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DELONG
Model Number:
DEL-UPS3
Dimension:
11*13.5*28cm
Weight:
3KG
Socket Type:
Universal USB
Color:
Green, Yellow
Features:
High Capacity
color:
Yellow / green (can be customized)
Capacity:
40Ah
DC output:
Four 12V/4A and Four USB 5V/2A
Protection:
BMS
Keywords:
Rechargeable Portable backup battery
Warranty:
One Year
Application:
Mobiles,computer,e-bike,car,etc
Solar charge:
18V 100W
LED light:
1W max to 3W
Output waveform:
Pure sine wave
Outport:
220V 110V, 220V 110V 12V 5V
Battery Type:
Polymer Battery
USB Port:
4 Usb Ports
Input:
110V~220V 50/60Hz
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard Export Package
Port
Shenzhen
Product Description



Product type

type



DL-500A

DL-500B

DL-500C

Capacity

12V 40Ah(444WH)

12V 30AH(333WH)

12V20AH(222WH)

Output power

Rated 500W , Max 1000W

Input voltage

AC:AC 110V~220V 50/60Hz ,Solar and wind energy DC 18-36V input,vehicle 12 V input,no controller.

Output voltage

220V 50Hz / 110V 60Hz

DC output

Four 12V/4A  Four USB5V/2A

LED light

1W max to 3W

Solar charge

18V 100W

Vehicle charge

12V output,please don’t use 24V

output waveform

pure sine wave

Power cut reaction time

≤5  millisecond

Overload

The AC output will break after overload, the indicating light will show red, disconnecting the overload and restart, then recovery.

Short out

The AC output will break after short out, disconnecting the overload and restart, then recovery.

Lithium battery

cycle life above 500 times

Weight

Net 3.0kg    with package is 3.5kg

Size

11*13.5*28cm

Color

Yellow(could custom other color)

Product Overviews



Functions

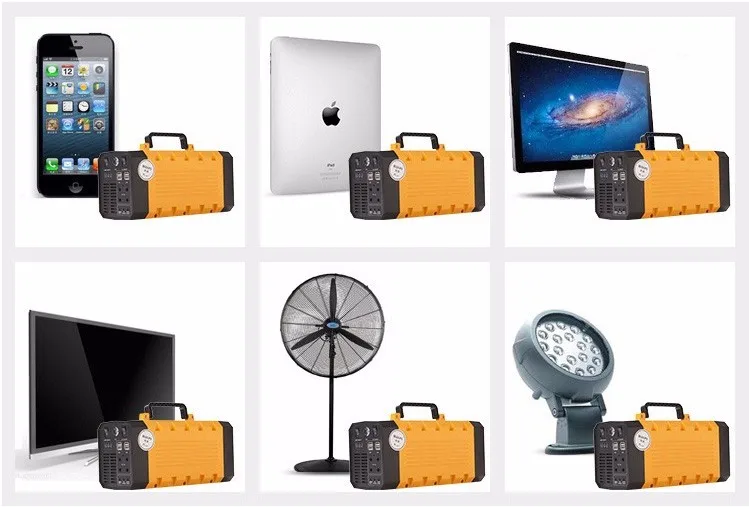

As AC/DC 12v / 220v / 5v output, it suitable for different devices such as mobile phones, tablets, laptops, small printers, kinds of lamps and lanterns, small fish tank heaters, photographic equipments, electric balance unicycle charging, medical equipments and so on.
Standby time



Accessories



Packaging & Shipping



Remark:

1.This product contains lithium battery, please stay away from fire source, if not use, please do special treatment, and do not throw away anywhere .

2.Do not use this product under the humid environment or in water ! Please pay attention to the moisture-proof and use it under the ventilated and dry environment.

3.Please gently get and put when use! Do not drop, knock or violent disassemble !

4. If there is any abnormal phenomena such as smoke or fire when using, in order to avoid the explosion , please stop to use it immediately and take relevant measures to put out the fire .

5. Please start this product first and then turn on the corresponding switch if you want to use it, and confirm the LED indicator light is on and the output is running.

6.For the first time to use, please refer to the use specification.

7.When this product is idle, please charge it every three months so as to ensure the battery’s lifetime.
